产品概述

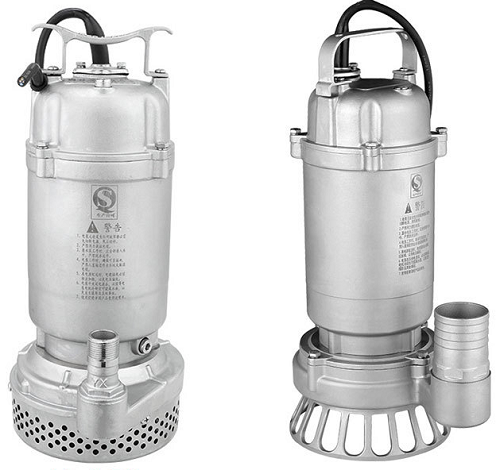

WQD/WQ型整体不锈钢污水污物潜水电泵采用铸造不绣钢机筒,防锈、防耐腐蚀等。介质温度不超过60℃,电机潜入液下深不超过5米,电机露出液面部分不超过电机的1/2。
适用于输送有卫生要求或轻度腐蚀的介质;建筑楼宇、住宅小区、市政工程、道路交通及施工、工厂给排水、养殖、药业、饮料、海水、盐水、一般腐蚀性介质中。
产品型号
50 WQ D 10 - 12 - 1.1 S
50 --- 出水口径
WQ --- 潜水排污泵
D --- 单相电机(不带D字样为三相电压)
10 --- 流量(m³/h)
12 --- 扬程(m)
1.1 --- 功率(KW)
S --- 铸件
性能参数
产品型号 |
额定流量(m³/h) |
额定扬程(m) |
功率 (kW) |
电压 (V) |
口径 (mm) |
WQD10-10-0.75S |
10 |
10 |
0.75 |
220 |
50 |
WQ10-10-0.75S |
10 |
10 |
0.75 |
380 |
50 |
WQD15-10-1.1S |
15 |
10 |
1.1 |
220 |
50 |
WQ15-10-1.1S |
15 |
10 |
1.1 |
380 |
50 |
WQD15-12-1.5S |
15 |
12 |
1.5 |
220 |
50 |
WQ15-12-1.5S |
15 |
12 |
1.5 |
380 |
50 |
WQ15-20-2.2S |
15 |
20 |
2.2 |
380 |
50 |
WQ25-15-2.2S |
25 |
15 |
2.2 |
380 |
65 |
WQ40-9-2.2S |
40 |
9 |
2.2 |
380 |
80 |
WQ50-7-2.2S |
50 |
7 |
2.2 |
380 |
100 |
WQ15-25-3S |
15 |
25 |
3 |
380 |
50 |
WQ25-20-3S |
25 |
20 |
3 |
380 |
65 |
WQ40-15-3S |
40 |
15 |
3 |
380 |
80 |
WQ50-10-3S |
50 |
10 |
3 |
380 |
100 |
WQ15-32-4S |
15 |
32 |
4 |
380 |
50 |
WQ25-25-4S |
25 |
25 |
4 |
380 |
65 |
WQ40-18-4S |
40 |
18 |
4 |
380 |
80 |
WQ50-15-4S |
50 |
15 |
4 |
380 |
100 |
WQ20-32-5.5S |
20 |
32 |
5.5 |
380 |
50 |
WQ30-25-5.5S |
30 |
25 |
5.5 |
380 |
65 |
WQ50-18-5.5S |
50 |
18 |
5.5 |
380 |
80 |
WQ80-10-5.5S |
80 |
10 |
5.5 |
380 |
100 |
WQ100-7-5.5S |
100 |
7 |
5.5 |
380 |
150 |
WQ20-40-7.5S |
20 |
40 |
7.5 |
380 |
50 |
WQ30-32-7.5S |
30 |
32 |
7.5 |
380 |
65 |
WQ45-22-7.5S |
45 |
22 |
7.5 |
380 |
80 |
WQ80-15-7.5S |
80 |
15 |
7.5 |
380 |
100 |
WQ100-10-7.5S |
100 |
10 |
7.5 |
380 |
150 |
WQ140-7-7.5S |
140 |
7 |
7.5 |
380 |
150 |
WQ100-25-11S |
100 |
25 |
11 |
380 |
100 |
WQ180-11-11S |
180 |
11 |
11 |
380 |
150 |
WQ300-7-11S |
300 |
7 |
11 |
380 |
200 |
WQ100-30-15S |
100 |
30 |
15 |
380 |
100 |
WQ180-15-15S |
180 |
15 |
15 |
380 |
150 |
WQ250-11-15S |
250 |
11 |
15 |
380 |
200 |
WQ100-35-18.5S |
100 |
35 |
18.5 |
380 |
100 |
WQ180-20-18.5S |
180 |
20 |
18.5 |
380 |
150 |
WQ250-15-18.5S |
250 |
15 |
18.5 |
380 |
200 |
WQ100-40-22S |
100 |
40 |
22 |
380 |
100 |
WQ150-25-22S |
150 |
25 |
22 |
380 |
150 |
WQ250-18-22S |
250 |
18 |
22 |
380 |
200 |
