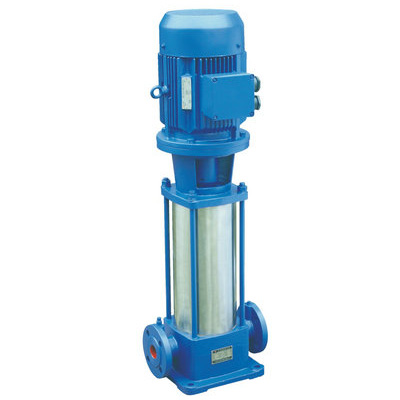

GDL多级泵
产品概述
GDL型多级离心泵为立式结构，占地面积小、采用不锈钢外套， 转子部件由轴、叶轮、叶轮挡套、轴套等零件组成；采用机械密封，耐磨损、不泄漏；进出口径相同，且位于同一中心线上，直接安装在管道上；加上防护罩则可置于户外使用，安装、维修方便。
适用于高压运行系统中冷热清水循环和增压、物理化学性质类似于水的液体，高层建筑多台泵并联供水、消防、锅炉给水和冷水系统及冲洗液的输送等。
产品型号
50 GDL 18 - 15 * 6
50 --- 泵进出口径（mm）
GDL --- 立式多级管道泵
18 --- 额定流量（m3/h）
15 --- 单级扬程（m）
6 --- 泵级数
性能参数
|
型号
|
流量
|
扬程
|
功率
|
转速
|
进出口径
|
|
m3/h
|
m
|
kw
|
r/min
|
mm
|
|
|
25GDL2-12×3
|
2
|
36
|
1.1
|
2900
|
25
|
|
25GDL2-12×4
|
48
|
1.1
|
|||
|
25GDL2-12×5
|
60
|
1.5
|
|||
|
25GDL2-12×6
|
72
|
1.5
|
|||
|
25GDL2-12×7
|
84
|
2.2
|
|||
|
25GDL2-12×8
|
96
|
2.2
|
|||
|
25GDL2-12×9
|
108
|
2.2
|
|||
|
25GDL2-12×10
|
120
|
3
|
|||
|
25GDL2-12×11
|
132
|
3
|
|||
|
25GDL2-12×12
|
144
|
3
|
|||
|
25GDL4-11×3
|
4
|
33
|
1.1
|
||
|
25GDL4-11×4
|
44
|
1.5
|
|||
|
25GDL4-11×5
|
55
|
2.2
|
|||
|
25GDL4-11×6
|
66
|
2.2
|
|||
|
25GDL4-11×7
|
77
|
3
|
|||
|
25GDL4-11×8
|
88
|
3
|
|||
|
25GDL4-11×9
|
99
|
3
|
|||
|
25GDL4-11×10
|
110
|
4
|
|||
|
25GDL4-11×11
|
121
|
4
|
|||
|
25GDL4-11×12
|
132
|
4
|
|||
|
25GDL4-11×13
|
143
|
4
|
|||
|
40GDL6-12×3
|
6
|
36
|
1.5
|
2900
|
40
|
|
40GDL6-12×4
|
48
|
2.2
|
|||
|
40GDL6-12×5
|
60
|
2.2
|
|||
|
40GDL6-12×6
|
72
|
3
|
|||
|
40GDL6-12×7
|
84
|
3
|
|||
|
40GDL6-12×8
|
96
|
4
|
|||
|
40GDL6-12×9
|
108
|
4
|
|||
|
40GDL6-12×10
|
120
|
4
|
|||
|
40GDL6-12×11
|
132
|
5.5
|
|||
|
40GDL6-12×12
|
144
|
5.5
|
|||
|
50GDL12-15×2
|
12
|
30
|
2.2
|
2900
|
50
|
|
50GDL12-15×3
|
45
|
3
|
|||
|
50GDL12-15×4
|
60
|
4
|
|||
|
50GDL12-15×5
|
75
|
5.5
|
|||
|
50GDL12-15×6
|
90
|
5.5
|
|||
|
50GDL12-15×7
|
105
|
7.5
|
|||
|
50GDL12-15×8
|
120
|
75
|
|||
|
50GDL12-15×9
|
135
|
11
|
|||
|
50GDL12-15×10
|
150
|
11
|
|||
|
50GDL18-15×3
|
18
|
45
|
4
|
||
|
50GDL18-15×4
|
60
|
5.5
|
|||
|
50GDL18-15×5
|
75
|
7.5
|
|||
|
50GDL18-15×6
|
90
|
7.5
|
|||
|
50GDL18-15×7
|
105
|
11
|
|||
|
50GDL18-15×8
|
120
|
11
|
|||
|
50GDL18-15×9
|
135
|
15
|
|||
|
50GDL18-15×10
|
150
|
15
|
|||
|
65GDL24-12×2
|
24
|
24
|
3
|
2900
|
65
|
|
65GDL24-12×3
|
36
|
4
|
|||
|
65GDL24-12×4
|
48
|
5.5
|
|||
|
65GDL24-12×5
|
60
|
7.5
|
|||
|
65GDL24-12×6
|
72
|
7.5
|
|||
|
6S5GDL24-12×7
|
84
|
11
|
|||
|
65GDL24-12×8
|
96
|
11
|
|||
|
65GDL24-12×9
|
108
|
15
|
|||
|
65GDL24-12×10
|
120
|
15
|
|||
|
80GDL36-12×2
|
36
|
24
|
4
|
2900
|
80
|
|
80GDL36-12×3
|
36
|
5.5
|
|||
|
80GDL36-12×4
|
48
|
7.5
|
|||
|
80GDL36-12×5
|
60
|
11
|
|||
|
80GDL36-12×6
|
72
|
11
|
|||
|
80GDL36-12×7
|
84
|
15
|
|||
|
80GDL36-12×8
|
96
|
15
|
|||
|
80GDL36-12×9
|
108
|
18.5
|
|||
|
80GDL36-12×10
|
120
|
18.5
|
|||
|
80GDL54-14×2
|
54
|
28
|
7.5
|
||
|
80GDL54-14×3
|
42
|
11
|
|||
|
80GDL54-14×4
|
56
|
15
|
|||
|
80GDL54-14×5
|
70
|
18.5
|
|||
|
80GDL54-14×6
|
84
|
18.5
|
|||
|
80GDL54-14×7
|
98
|
22
|
|||
|
100GDL72-14×2
|
72
|
28
|
11
|
2900
|
100
|
|
100GDL72-14×3
|
42
|
15
|
|||
|
100GDL72-14×4
|
56
|
18.5
|
|||
|
100GDL72-14×5
|
70
|
22
|
|||
|
100GDL72-14×6
|
84
|
30
|
|||
|
100GDL72-14×7
|
98
|
30
|
|||
|
100GDL72-14×8
|
112
|
37
|
|||
|
100GDL72-14×9
|
126
|
37
|
|||
|
100GDL72-14×10
|
140
|
45
|
|||
|
125GDL100-20×2
|
100
|
40
|
18.5
|
2900
|
125
|
|
125GDL100-20×3
|
60
|
30
|
|||
|
125GDL100-20×4
|
80
|
37
|
|||
|
125GDL100-20×5
|
100
|
45
|
|||
|
125GDL100-20×6
|
120
|
55
|
|||
|
125GDL100-20×7
|
140
|
75
|
|||
|
125GDL100-20×8
|
160
|
75
|
|||
|
125GDL100-20×9
|
180
|
75
|
|||
|
125GDL100-20×10
|
200
|
90
|
|||
|
150GDL160-20×2
|
160
|
40
|
30
|
2900
|
150
|
|
150GDL160-20×3
|
60
|
37
|
|||
|
150GDL160-20×4
|
80
|
55
|
|||
|
150GDL160-20×5
|
100
|
75
|
|||
|
150GDL160-20×6
|
120
|
75
|
|||
|
150GDL160-20×7
|
140
|
90
|
