产品概述

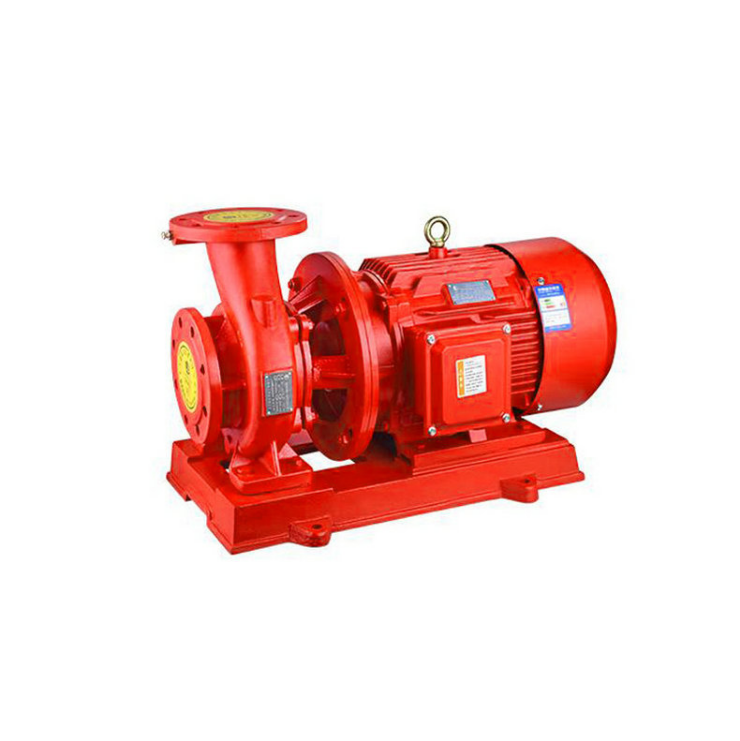

XBD-W型卧式消防泵系单级单吸卧式消防泵其性能参数及技术指标符合消防新标准,效率高、运行噪音低、抗汽蚀性能好、结构合理、使用寿命长等。可供输送不含固体颗粒的清水及物理化学性质类似于水的液体。介质温度不超过80℃。
产品用途
适用于消防系统增压送水、工业和城市给排水、厂矿给排水、高层建筑增压送水、远距离送水、采暖、浴室、锅炉冷暖水循环增压、空调制冷系统送水及设备配套等场合。
型号意义
XBD 3.2/5-65W-160A
XBD–消防泵组代号
3.2–设计压力(1/10MPa)即扬程为32m
5–设计流量(L/S)
65–进出口直径(mm)
W–结构为卧式
160–叶轮名义直径(mm)
A–叶轮切割
性能参数
型 号 |
流量Q |
出口压力 |
转速n |
功率P |
效率η |
XBD3.0/5-50(65)W |
5 |
0.30 |
2900 |
4 |
63 |
XBD3.2/5-50(65)W |
0.32 |
||||
XBD3.4/5-50(65)W |
0.34 |
||||
XBD4.6/5-50(65)W |
5 |
0.46 |
2900 |
7.5 |
58 |
XBD4.8/5-50(65)W |
0.48 |
||||
XBD5.0/5-50(65)W |
0.50 |
||||
XBD7.6/5-50(65)W |
5 |
0.76 |
2900 |
15 |
50 |
XBD7.8/5-50(65)W |
0.78 |
||||
XBD8.0/5-50(65)W |
0.80 |
||||
XBD11/5-50(65)W |
5 |
1.10 |
2900 |
30 |
40 |
XBD12/5-50(65)W |
1.20 |
||||
XBD12.5/5-50(65)W |
1.25 |
||||
XBD3.0/10-65(80)W |
10 |
0.30 |
2900 |
7.5 |
71 |
XBD3.2/10-65(80)W |
0.32 |
||||
XBD3.4/10-65(80)W |
0.34 |
||||
XBD4.6/10-65(80)W |
10 |
0.46 |
2900 |
15 |
67 |
XBD4.8/10-65(80)W |
0.48 |
||||
XBD5.0/10-65(80)W |
0.50 |
||||
XBD7.6/10-65(80)W |
10 |
0.76 |
2900 |
22 |
59 |
XBD7.8/10-65(80)W |
0.78 |
||||
XBD8.0/10-65(80)W |
0.80 |
||||
XBD11/10-65(80)W |
10 |
1.10 |
2900 |
37 |
54 |
XBD12/10-65(80)W |
1.20 |
||||
XBD12.5/10-65(80)W |
1.25 |
||||
XBD3.0/25-80(100)W |
25 |
0.30 |
2900 |
15 |
76 |
XBD3.2/25-80(100)W |
0.32 |
||||
XBD3.4/25-80(100)W |
0.34 |
||||
XBD4.6/25-80(100)W |
25 |
0.46 |
2900 |
22 |
74 |
XBD4.8/25-80(100)W |
0.48 |
||||
XBD5.0/25-80(100)W |
0.50 |
||||
XBD7.6/25-80(100)W |
25 |
0.76 |
2900 |
37 |
69 |
XBD7.8/25-80(100)W |
0.78 |
||||
XBD8.0/25-80(100)W |
0.80 |
||||
XBD11/25-80(100)W |
25 |
1.10 |
2900 |
75 |
69 |
XBD12/25-80(100)W |
1.20 |
||||
XBD12.5/25-80(100)W |
1.25 |
||||
XBD13/25-80(100)W |
25 |
1.30 |
2900 |
90 |
57 |
XBD14/25-80(100)W |
1.40 |
||||
XBD15/25-80(100)W |
1.50 |
||||
XBD3.0/45-100(125)W |
45 |
0.30 |
2900 |
22 |
73 |
XBD3.2/45-100(125)W |
0.32 |
||||
XBD3.4/45-100(125)W |
0.34 |
||||
XBD4.6/45-100(125)W |
45 |
0.46 |
2900 |
37 |
77 |
XBD4.8/45-100(125)W |
0.48 |
||||
XBD5.0/45-100(125)W |
0.50 |
||||
XBD7.6/45-100(125)W |
45 |
0.76 |
2900 |
55 |
80 |
XBD7.8/45-100(125)W |
0.78 |
||||
XBD8.0/45-100(125)W |
0.80 |
||||
XBD11/45-100(125)W |
45 |
1.10 |
2900 |
90 |
70 |
XBD12/45-100(125)W |
1.20 |
||||
XBD12.5/45-100(125)W |
1.25 |
||||
XBD2.8/55-150(200)W |
55 |
0.28 |
1450 |
30 |
78 |
XBD3.0/55-150(200)W |
0.30 |
||||
XBD3.2/55-150(200)W |
0.32 |
||||
XBD4.6/55-150(200)W |
55 |
0.46 |
1450 |
45 |
75 |
XBD4.8/55-150(200)W |
0.48 |
||||
XBD5.0/55-150(200)W |
0.50 |
||||
XBD7.6/55-150W |
55 |
0.76 |
2900 |
75 |
76 |
XBD7.8/55-150W |
0.78 |
||||
XBD8.0/55-150W |
0.80 |
||||
XBD11/55-150W |
55 |
1.10 |
2900 |
110 |
73 |
XBD12/55-150W |
1.20 |
||||
XBD12.5/55-150W |
1.25 |
||||
XBD13/55-150W |
45 |
1.30 |
2900 |
110 |
80 |
XBD14/55-150W |
1.40 |
||||
XBD15/55-150W |
1.50 |
||||
XBD4.6/100-200W |
100 |
0.46 |
1450 |
75 |
81 |
XBD4.8/100-200W |
0.48 |
||||
XBD5.0/100-200W |
0.50 |
||||
XBD3.0/150-250W |
150 |
0.30 |
1450 |
75 |
80 |
XBD3.2/150-250W |
0.32 |
||||
XBD3.4/150-250W |
0.34 |
||||
XBD4.6/140-250W |
140 |
0.46 |
1450 |
90 |
72 |
XBD4.8/140-250W |
0.48 |
||||
XBD5.0/140-250W |
0.50 |
||||
XBD2.4/200-300W |
200 |
0.24 |
970 |
75 |
81 |
XBD2.6/200-300W |
0.26 |
||||
XBD2.8/200-300W |
0.28 |
||||
XBD2.8/200-300(350)W |
200 |
0.28 |
1450 |
90 |
84 |
XBD3.0/200-300(350)W |
0.30 |
||||
XBD3.2/200-300(350)W |
0.32 |
||||
XBD4.0/200-300W |
200 |
0.40 |
970 |
132 |
84 |
XBD4.2/200-300W |
0.42 |
||||
XBD4.4/200-300W |
0.44 |
||||
XBD4.6/160-300W |
160 |
0.46 |
1450 |
110 |
78 |
XBD4.8/160-300W |
0.48 |
||||
XBD5.0/160-300W |
0.50 |
||||
XBD4.6/200-350W |
200 |
0.46 |
1450 |
160 |
83 |
XBD4.8/200-350W |
0.48 |
||||
XBD5.0/200-350W |
0.50 |
||||
XBD2.8/300-400W |
300 |
0.28 |
1450 |
132 |
76 |
XBD3.0/300-400W |
0.30 |
||||
XBD3.2/300-400W |
0.32 |
||||
XBD2.8/330-500W |
330 |
0.28 |
1450 |
160 |
78 |
XBD3.0/330-500W |
0.30 |
||||
XBD3.2/330-500W |
0.32 |
