产品概述

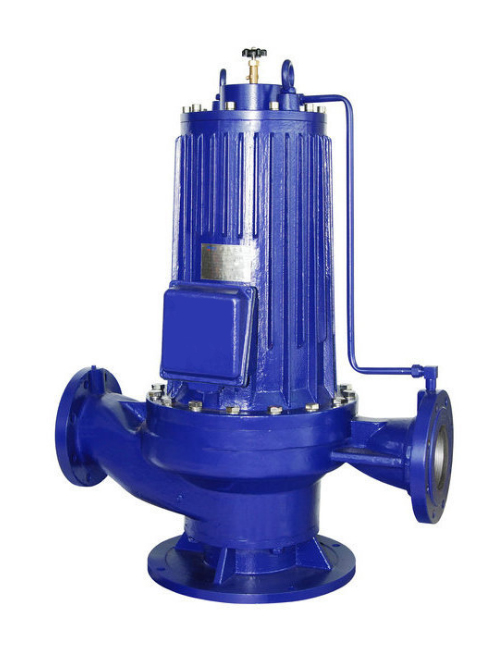

PBG型屏蔽式管道泵为立式结构，机泵一体式，进出口径规格相同，且位于同一轴心线上，直接安装在管路上；泵与电机同轴，轴向尺寸短，泵运行平稳，噪音低。安装检修方便，无需拆动管路系统，只要拆下连接体螺母即可抽出全部转子部件进行检查和维修。
普通型供输送清水及物理化学性质类似于清水的其它液体之用，介质使用温度不超过80℃；适用于工业和城市给排水,高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套；且适用对振动、噪音要求较高的场合,如地下泵房、空调制冷系统等。
热水型主要供输送温度不超过160℃不含固体颗粒的软水之用；适用于能源、冶金、化工、纺织、造纸以及宾馆、饭店、浴室、锅炉热水增压循环输送及城市采暖系统循环等场合。
防腐型供输送不含固体颗粒,具有腐蚀性,粘度类似于水的液体；适用于石油、化工、冶金、电力、造纸、食品、制药和合成纤维等部门。
产品型号
PBG --- 屏蔽式管道泵
100 --- 进出口口径(mm)
315 --- 叶轮名义直径(mm)
I --- 扩流型
A、B --- 叶轮经 一、二次切割
性能参数
|
型号 |
流量
|
杨程 (m) |
效率 (%) |
转速 (r/min) |
电机功率（kw） |
必需汽蚀 余量(m) |
重量 (kg) |
|
|
(m3/h)
|
(L/s) |
|||||||
|
PBG40-100
|
6.3
|
1.75
|
12.5
|
54
|
1450
|
0.55
|
3.5
|
32
|
|
PBG40-100A
|
5.6
|
1.56
|
10
|
52
|
1450
|
0.37
|
3.5
|
32
|
|
PBG40-125
|
6.3
|
1.75
|
20
|
46
|
1450
|
1.1
|
3.5
|
34
|
|
PBG40-125A
|
5.6
|
1.56
|
16
|
45
|
1450
|
0.75
|
3.5
|
33
|
|
PBG40-160
|
6.3
|
1.75
|
32
|
40
|
2900
|
2.2
|
3.5
|
47
|
|
PBG40-160A
|
5.9
|
1.64
|
28
|
39
|
2900
|
1.5
|
3.5
|
43
|
|
PBG40-160B
|
5.5
|
1.53
|
24
|
38
|
2900
|
1.1
|
3.5
|
38
|
|
PBG40-200
|
6.3
|
1.75
|
50
|
33
|
2900
|
4.0
|
3.5
|
74
|
|
PBG40-200A
|
5.9
|
1.64
|
44
|
31
|
2900
|
3.0
|
3.5
|
62
|
|
PBG40-200B
|
5.3
|
1.47
|
36
|
29
|
2900
|
2.2
|
3.5
|
52
|
|
PBG40-250
|
6.3
|
1.75
|
80
|
28
|
2900
|
7.5
|
3.5
|
105
|
|
PBG40-250A
|
5.9
|
1.64
|
70
|
28
|
2900
|
5.5
|
3.5
|
98
|
|
PBG40-250B
|
5.5
|
1.53
|
60
|
27
|
2900
|
4.0
|
3.5
|
77
|
|
PBG50-100
|
12.5
|
3.47
|
12.5
|
62
|
1450
|
1.1
|
3.5
|
36
|
|
PBG50-100A
|
11
|
3.05
|
10
|
60
|
1450
|
0.75
|
3.5
|
35
|
|
PBG50-125
|
12.5
|
3.47
|
20
|
58
|
1450
|
1.1
|
3.5
|
43
|
|
PBG50-125A
|
11
|
3.05
|
16
|
57
|
1450
|
1.1
|
3.5
|
38
|
|
PBG50-160
|
12.5
|
3.47
|
32
|
52
|
2900
|
3.0
|
3.5
|
59
|
|
PBG50-160A
|
11.7
|
3.25
|
28
|
51
|
2900
|
2.2
|
3.5
|
51
|
|
PBG50-160B
|
10.4
|
2.89
|
22
|
50
|
2900
|
1.5
|
3.5
|
47
|
|
PBG50-200
|
12.5
|
3.47
|
50
|
46
|
2900
|
5.5
|
3.5
|
101
|
|
PBG50-200A
|
11.7
|
3.25
|
44
|
45
|
2900
|
4.0
|
3.5
|
80
|
|
PBG50-200B
|
10.6
|
2.94
|
36
|
44
|
2900
|
3.0
|
3.5
|
68
|
|
PBG50-250
|
12.5
|
3.47
|
80
|
38
|
2900
|
11
|
3.5
|
160
|
|
PBG50-250A
|
11.6
|
3.22
|
70
|
38
|
2900
|
7.5
|
3.5
|
115
|
|
PBG50-250B
|
10.8
|
3.0
|
60
|
37
|
2900
|
7.5
|
3.5
|
114
|
|
PBG50-250C
|
10.0
|
2.78
|
52
|
36
|
2900
|
5.5
|
3.5
|
108
|
|
PBG65-100
|
25
|
6.94
|
12.5
|
69
|
1450
|
1.5
|
3.8
|
46
|
|
PBG65-100A
|
22.3
|
6.19
|
10
|
67
|
1450
|
1.1
|
3.8
|
41
|
|
PBG65-125
|
25
|
6.94
|
20
|
68
|
1450
|
3.0
|
3.8
|
58
|
|
PBG65-125A
|
22.3
|
6.19
|
16
|
66
|
1450
|
2.2
|
3.8
|
49
|
|
PBG65-160
|
25
|
6.94
|
32
|
63
|
1450
|
4.0
|
3.8
|
75
|
|
PBG65-160A
|
23.4
|
6.5
|
28
|
62
|
1450
|
4.0
|
3.8
|
75
|
|
PBG65-160B
|
21.6
|
6.0
|
24
|
58
|
1450
|
3.0
|
3.8
|
107
|
|
PBG65-200
|
25
|
6.94
|
50
|
58
|
2900
|
7.5
|
3.8
|
107
|
|
PBG65-250A
|
23.4
|
6.5
|
70
|
50
|
2900
|
11.0
|
3.8
|
170
|
|
PBG65-250B
|
21.6
|
6.0
|
60
|
49
|
2900
|
11.0
|
3.8
|
170
|
|
PBG65-315
|
25
|
6.94
|
125
|
40
|
2900
|
30.0
|
3.8
|
320
|
|
PBG65-315A
|
23.7
|
6.58
|
113
|
40
|
2900
|
22.0
|
3.8
|
255
|
|
PBG65-315B
|
22.5
|
6.25
|
101
|
39
|
2900
|
18.5
|
3.8
|
225
|
|
PBG65-315C
|
20.6
|
5.72
|
85
|
38
|
2900
|
15.0
|
3.8
|
205
|
|
PBG80-100
|
50
|
13.9
|
12.5
|
73
|
1450
|
3.0
|
4.2
|
63
|
|
PBG80-100A
|
44.7
|
12.4
|
10
|
72
|
1450
|
2.2
|
4.2
|
54
|
|
PBG80-125
|
50
|
13.9
|
20
|
72.5
|
1450
|
5.5
|
4.2
|
99
|
|
PBG80-125A
|
45
|
12.5
|
16
|
71
|
1450
|
4.0
|
4.2
|
79
|
|
PBG80-160
|
50
|
13.9
|
32
|
71
|
1450
|
7.5
|
4.2
|
105
|
|
PBG80-160A
|
46.7
|
13.0
|
28
|
70
|
1450
|
7.5
|
4.2
|
105
|
|
PBG80-160B
|
43.3
|
12.0
|
24
|
69
|
1450
|
5.5
|
4.2
|
98
|
|
PBG80-200
|
50
|
13.9
|
50
|
67
|
2900
|
15.0
|
4.2
|
175
|
