管道循环泵
产品概述

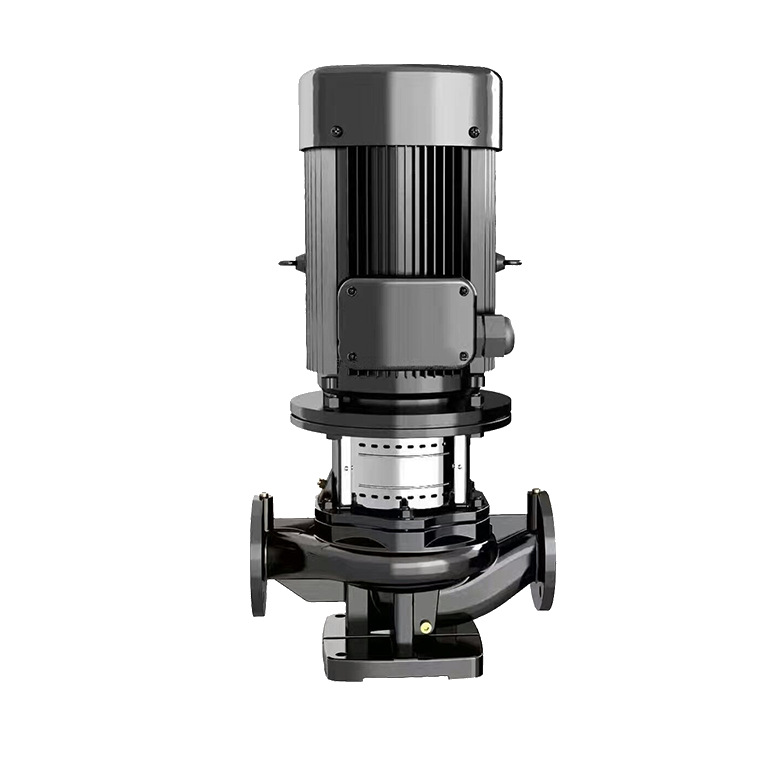

TD型单级单吸管道循环泵,配标准电机和机械密封。产品适宜在清洁、稀薄、非侵蚀、非易爆易燃,且不含有对泵造成机械或化学损害的固体颗粒和纤维的液体中使用。泵安装在户外需配置合适的外罩,防止电器元件进水或凝霜。为了防止噪音和振动,泵在安装时要采用减振底座;一般采用水泥底座,底座的重量应该是大于或等于1.5×泵重量。
适用于生活用水、工业用水、冷却系统用水和区域供热系统的冷、热用水;也可以用于化工、制药、食品加工等行业;原料的输送、系统增压、混合环路循环泵。液体介质温度:-15℃~110℃。
产品型号
TD 50 - 18 / 2
TD --- 管道循环泵
50 --- 进出口径(mm)
18 --- 额定扬程(m)
2 --- 电机极数
泵型号 | 额定流量Q[m3/h] | 额定扬程H[m] |
转速 n[r/min] |
配用功率P[kW] | |
1×220V | 3×380V | ||||
TD32-18/2 | 8 | 18 | 2900 | 1.1 | 1.1 |
TD32-21/2 | 12.5 | 21 | 2900 | 1.5 | 1.5 |
TD32-26/2 | 12.5 | 26 | 2900 | 2.2 | 2.2 |
TD32-33/2 | 12.5 | 33 | 2900 | 3 | |
TD32-40/2 | 12.5 | 40 | 2900 | 4 | |
TD32-50/2 | 12.5 | 50 | 2900 | 5.5 | |
TD40-16/2 | 12.5 | 16 | 2900 | 1.1 | 1.1 |
TD40-21/2 | 12.5 | 21 | 2900 | 1.5 | 1.5 |
TD40-20/2 | 20 | 20 | 2900 | 2.2 | 2.2 |
TD40-26/2 | 20 | 26 | 2900 | 3 | |
TD40-30/2 | 25 | 30 | 2900 | 4 | |
TD40-36/2 | 25 | 36 | 2900 | 5.5 | |
TD40-48/2 | 25 | 48 | 2900 | 7.5 | |
TD50-32/2 | 12.5 | 32 | 2900 | 3 | |
TD50-39/2 | 12.5 | 39 | 2900 | 4 | |
TD50-49/2 | 12.5 | 49 | 2900 | 5.5 | |
TD50-59/2 | 12.5 | 59 | 2900 | 7.5 | |
TD50-80/2 | 12.5 | 80 | 2900 | 11 | |
TD50-12/2 | 16 | 12 | 2900 | 1.1 | 1.1 |
TD50-15/2 | 20 | 15 | 2900 | 1.5 | 1.5 |
TD50-18/2 | 25 | 18 | 2900 | 2.2 | 2.2 |
TD50-24/2 | 25 | 24 | 2900 | 3 | |
TD50-28/2 | 30 | 28 | 2900 | 4 | |
TD50-35/2 | 30 | 35 | 2900 | 5.5 | |
TD50-40/2 | 35 | 40 | 2900 | 7.5 | |
TD50-50/2 | 40 | 50 | 2900 | 11 | |
TD50-60/2 | 50 | 60 | 2900 | 15 | |
TD50-70/2 | 50 | 70 | 2900 | 18.5 | |
TD50-81/2 | 50 | 81 | 2900 | 22 | |
TD65-37/2 | 25 | 37 | 2900 | 5.5 | |
TD65-48/2 | 25 | 48 | 2900 | 7.5 | |
TD65-15/2 | 30 | 15 | 2900 | 2.2 | 2.2 |
TD65-20/2 | 30 | 20 | 2900 | 3 | |
TD65-22/2 | 40 | 22 | 2900 | 4 | |
TD65-30/2 | 40 | 30 | 2900 | 5.5 | |
TD65-34/2 | 50 | 34 | 2900 | 7.5 | |
TD65-41/2 | 50 | 41 | 2900 | 11 | |
TD65-51/2 | 50 | 51 | 2900 | 15 | |
TD65-61/2 | 50 | 61 | 2900 | 18.5 | |
TD65-68/2 | 50 | 68 | 2900 | 22 | |
TD65-85/2 | 50 | 85 | 2900 | 30 | |
TD80-13/2 | 50 | 13 | 2900 | 3 | |
TD80-18/2 | 50 | 18 | 2900 | 4 | |
TD80-23/2 | 50 | 23 | 2900 | 5.5 | |
TD80-29/2 | 50 | 29 | 2900 | 7.5 | |
TD80-41/2 | 50 | 41 | 2900 | 11 | |
TD80-48/2 | 50 | 48 | 2900 | 15 | |
TD80-32/2 | 70 | 32 | 2900 | 11 | |
TD80-38/2 | 80 | 38 | 2900 | 15 | |
TD80-47/2 | 80 | 47 | 2900 | 18.5 | |
TD80-54/2 | 80 | 54 | 2900 | 22 | |
TD80-67/2 | 80 | 67 | 2900 | 30 | |
TD100-9/2 | 50 | 9 | 2900 | 2.2 | 2.2 |
TD100-15/2 | 60 | 15 | 2900 | 4 | |
TD100-17/2 | 80 | 17 | 2900 | 5.5 | |
TD100-22/2 | 80 | 22 | 2900 | 7.5 | |
TD100-27/2 | 100 | 27 | 2900 | 11 | |
TD100-33/2 | 100 | 33 | 2900 | 15 | |
TD100-40/2 | 100 | 40 | 2900 | 18.5 | |
TD100-48/2 | 100 | 48 | 2900 | 22 | |
TD100-52/2 | 130 | 52 | 2900 | 30 | |
TD125-11/4 | 120 | 11 | 1450 | 5.5 | |
TD125-14/4 | 120 | 14 | 1450 | 7.5 | |
TD125-19/4 | 140 | 19 | 1480 | 11 | |
TD125-22/4 | 160 | 22 | 1480 | 15 | |
TD125-28/4 | 160 | 28 | 1480 | 18.5 | |
TD125-32/4 | 160 | 32 | 1480 | 22 | |
TD125-40/4 | 160 | 40 | 1480 | 30 | |
TD125-48/4 | 160 | 48 | 1480 | 37 | |
TD150-12.5/4 | 200 | 12.5 | 1480 | 11 | |
TD150-17/4 | 200 | 17 | 1480 | 15 | |
TD150-22/4 | 200 | 22 | 1480 | 18.5 | |
TD150-25/4 | 200 | 25 | 1480 | 22 | |
TD150-33/4 | 200 | 33 | 1480 | 30 | |
TD150-40/4 | 200 | 40 | 1480 | 37 | |
TD150-50/4 | 200 | 50 | 1480 | 45 | |
TD200-16/4 | 300 | 16 | 1480 | 18.5 | |
TD200-19/4 | 300 | 19 | 1480 | 22 | |
TD200-24/4 | 300 | 24 | 1480 | 30 | |
TD200-31/4 | 300 | 31 | 1480 | 37 | |
TD200-36/4 | 300 | 36 | 1480 | 45 | |
TD200-47/4 | 300 | 47 | 1480 | 55 | |
TD200-53/4 | 300 | 53 | 1480 | 75 | |
TD200-12.5/4 | 400 | 12.5 | 1480 | 22 | |
TD200-20/4 | 400 | 20 | 1480 | 30 | |
TD200-23/4 | 400 | 23 | 1480 | 37 | |
TD200-27/4 | 400 | 27 | 1480 | 45 | |
TD200-32/4 | 400 | 32 | 1480 | 55 | |
TD200-43/4 | 400 | 43 | 1480 | 75 | |
TD200-50/4 | 400 | 50 | 1480 | 90 | |
TD250-16/4 | 500 | 16 | 1480 | 30 | |
TD250-19/4 | 500 | 19 | 1480 | 37 | |
TD250-22/4 | 500 | 22 | 1480 | 45 | |
TD250-29/4 | 500 | 29 | 1480 | 55 | |
TD250-36/4 | 500 | 36 | 1480 | 75 | |
TD250-47/4 | 500 | 47 | 1480 | 90 | |
TD250-56/4 | 500 | 56 | 1480 | 110 | |
TD250-12.5/4 | 630 | 12.5 | 1480 | 30 | |
TD250-14/4 | 630 | 14 | 1480 | 37 | |
TD250-17/4 | 630 | 17 | 1480 | 45 | |
TD250-20/4 | 630 | 20 | 1480 | 55 | |
TD250-26/4 | 630 | 26 | 1480 | 75 | |
TD250-32/4 | 630 | 32 | 1480 | 90 | |
TD250-40/4 | 630 | 40 | 1480 | 110 | |
TD250-50/4 | 630 | 50 | 1480 | 132 | |
TD300-15/4 | 900 | 15 | 1480 | 55 | |
TD300-20/4 | 900 | 20 | 1480 | 75 | |
TD300-25/4 | 900 | 25 | 1480 | 90 | |
TD300-30/4 | 900 | 30 | 1480 | 110 | |
TD300-35/4 | 900 | 35 | 1480 | 132 | |
TD300-44/4 | 900 | 44 | 1480 | 160 | |
TD300-55/4 | 900 | 55 | 1480 | 200 |
